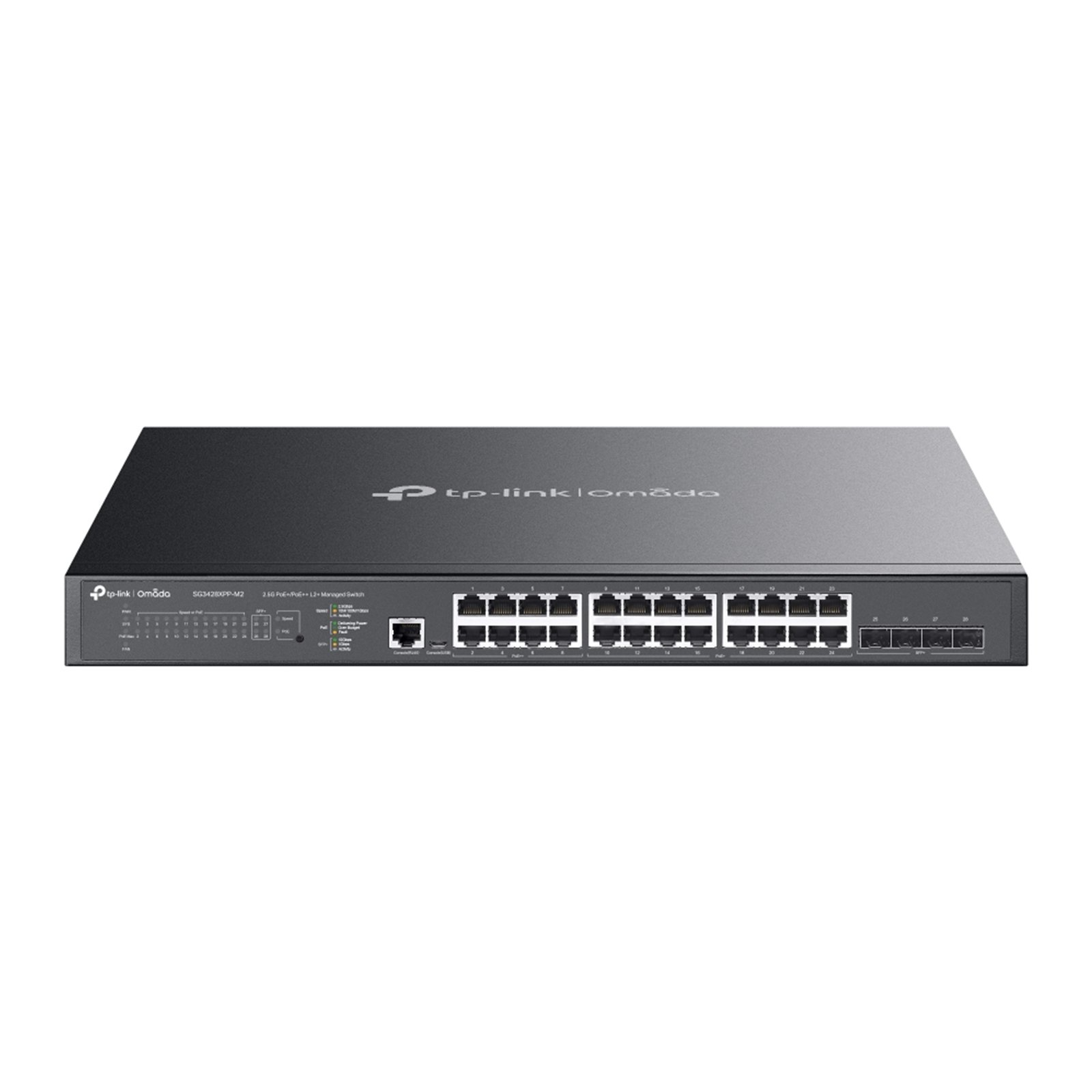

Name: TP-Link Omada SG3428XPP-M2 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ &amp; 8-Port PoE
SKU: NPTPL-SG428XPPM2
Price: 597.89 GBP
Availability: InStock

Description

TP-Link Omada SG3428XPP-M2 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE

Additional information

Weight	6.2 kg
10G support	Yes
2.5G Ethernet (copper) ports quantity	24
AC input frequency	50/60 Hz
AC input voltage	100 – 240 V
Access Control List (ACL)	Yes
ARP inspection	Yes
Authentication	Guest VLAN, MAC-based authentication, Port-based authentication
Authentication type	AAA, IEEE 802.1x, RADIUS, TACACS+
Basic switching RJ-45 Ethernet ports quantity	24
Basic switching RJ-45 Ethernet ports type	2.5G Ethernet (100/1000/2500)
BPDU filtering/protection	Yes
Brand	TP-LINK
Broadcast storm control	Yes
Cables included	AC
Cloud-managed	Yes
Compliance certificates	CE, Federal Communications Commission (FCC), RoHS
Configuring Location Settings (CLI)	Yes
Console port	RJ-45/Micro-USB
Depth	330 mm
DHCP features	DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping
Ethernet LAN data rates	10,100,1000,2500,10000 Mbit/s
Flash memory	32 MB
Flow control support	Yes
Form factor	1U
Forwarding rate	148.8 Mpps
Full duplex	Yes
GARP VLAN Registration Protocol (GVRP)	Yes
Half duplex	Yes
Head-of-line (HOL) blocking	Yes
Heat dissipation	2153.45 BTU/h
Height	44 mm
IGMP snooping	Yes
Internal memory	256 MB
IP-MAC-Port binding	Yes
IPv4 & IPv6 features	IPv4/IPv6 access-control list (ACL), IPv6 ping, IPv6 portal, IPv6 tracert
IPv4 routes	48
IPv6 routes	48
Jumbo frames	9000
Jumbo frames support	Yes
LED indicators	Yes
Link aggregation	Yes
Loop protection	Yes
MAC address table	32000 entries
Management protocols	SNMP v1/v2c/v3
Memory type	DRAM
MIB support	RFC1213, RFC2233, RFC1643, RFC1493, RFC2674, RFC2819, RFC2021, RFC2620, RFC2618, RFC2925
Multicast Listener Discovery (MLD) snooping	MLD v1/v2
Multicast support	Yes
Networking standards	IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, IEEE 802.3bz, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z
Number of fans	3 fan(s)
Number of IP interfaces	32
Number of queues	8
Number of static routes	48
Operating relative humidity (H-H)	10 – 90%
Operating temperature (T-T)	0 – 40 °C
Packet buffer memory	16 MB
Password protection	Yes
Port mirroring	Yes
Power consumption (max)	629.1 W
Power over Ethernet (PoE)	Yes
Power over Ethernet 4PPoE (PoE++) ports quantity	8
Power over Ethernet plus (PoE+) ports quantity	16
Power source	AC/PoE
Power supply included	Yes
Product colour	Black
Quality of Service (QoS) support	Yes
Queue scheduling algorithms	SP, WRR+SP, Weighted Round Robin (WRR)
Quick start guide	Yes
Rack mount kit	Yes
Rack mounting	Yes
Rate limiting	Yes
Redundant fans support	Yes
Redundant power supply (RPS) support	Yes
Security algorithms	HTTPS, SSH, SSH-2, SSL/TLS
SFP+ module slots quantity	4
Spanning tree protocol	Yes
SSH/SSL support	Yes
Static port security	Yes
Static route	Yes
Storage relative humidity (H-H)	5 – 90%
Storage temperature (T-T)	-40 – 70 °C
Store-and-forward	Yes
Sustainability compliance	Yes
Switch layer	L2+
Switch type	Managed
Switching capacity	200 Gbit/s
System event log	Yes
Total Power over Ethernet (PoE) budget	500 W
Virtual LAN features	MAC address-based VLAN, Port-based VLAN, Protocol-based VLAN, Stacked VLAN, Tagged VLAN, Voice VLAN
VLAN support	Yes
Web-based management	Yes
Width	440 mm
